Click Image for Gallery

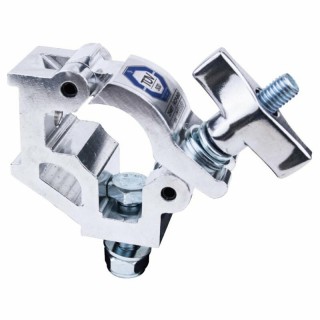

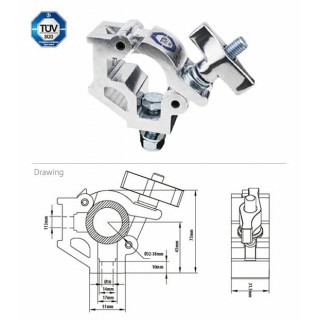

KUPO Nugget Coupler (KCP-860) is a lightweight and low profile professional coupler, constructed from high tensile aluminum extrusion. It has been developed for installations where load capacities of up to 264lbs (120kg) are required. Nugget Coupler is designed to fit tubes with diameters between 32mm-38mm (1.26"-1.50"). It has double level's counter sunk for M10 or 3/8" hex head. Equipped with M10 bolt and nut. Unique windows for safety wire access through. Hook struct of top opening section limits the open pace that offers assistance to rig, and two fitting bases let it become a multi-function coupler. A captive on top of thread bolt to avoid wing nut falling off the clamp. TUV certified, and ideal for TV studio or theater.
- 6061 T6 high tensile aluminum extrusion
- Feasible for tube dia. 32~38mm (1.26"-1.50")
- WLL up to 120kgs (264lbs)
- A captive on top of thread bolt to avoid wing nut falling off the clamp
- Double level's counter sunk for M10 or 3/8" hex screw for custom solutions
- TUV certified
- Equipped with M10 bolt and nut.
- 6061 T6 high tensile aluminum extrusion
- Feasible for tube dia. 32~38mm (1.26"-1.50")
- WLL up to 120kgs (264lbs)
- A captive on top of thread bolt to avoid wing nut falling off the clamp
- Double level's counter sunk for M10 or 3/8" hex screw for custom solutions
- TUV certified
- Equipped with M10 bolt and nut.
