Amazing output, beautifully controlled

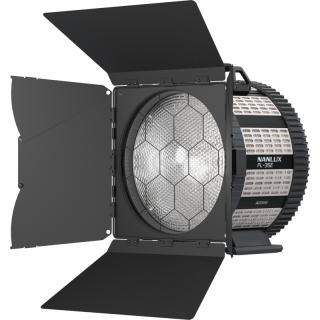

The Motorized Fresnel Lens FL-35E seamlessly integrates with the Evoke 2400B, delivering a remarkable illumination of 75,700 lux @3m (5600K, 15°). Boasting superior optical performance and precise beam angle control the glass optic produces beautifully even illumination with well-defined edges. Rotating barndoors (non-motorised) are included with the Fresnel for additional control when needed.

An intelligent lighting solution with remote control

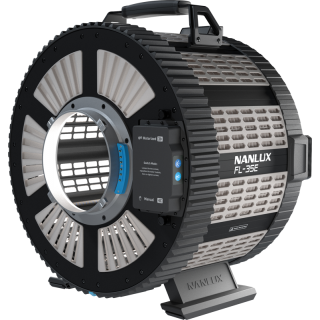

The FL-35E features a precise motorized adjustment function powered via the electronic contacts in NANLUX’s NL mount on the Evoke 2400B. There are multiple control methods with users able to control the lens via the NANLINK APP, via the light’s main menu, DMX console, wired controller or using a physical button on the lens itself. This gives gaffers and lighting designers the flexibility to choose the most convenient control method based on the scene's requirements.

The motor unit can also be disengaged if manual adjustment of the Fresnel is required. A clever captive screw mechanism allows the motor fixing to be adjusted without the risk of the motor separating completely from the Fresnel.

IP55 weatherproof performance

Building upon the outstanding protection attributes of the Evoke 2400B, the FL-35E boasts an IP55 rating, ensuring strong dust and water resistance. This feature makes the Evoke 2400B/FL-35E combination suitable for use in harsh environments, providing consistent and stable lighting for all-day-long exterior shoots or environmentally challenging production scenes.

The FL-35E Fresnel weighs 10kg and has dimensions of 430.38 × 490.15 × 330.3mm.

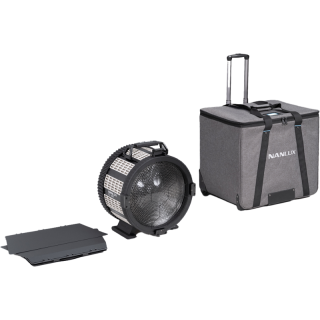

What's Included:

FL-35E Motorized Fresnel Lens × 1
Barndoor × 1
User Manual × 1
Trolley Case × 1
