FL-12E

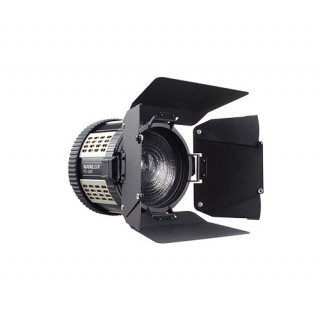

Designed with an FE mount, the FL-12E Motorized Fresnel Lens is compatible with Nanlux's FE mount and FM mount fixtures. It features a 15°–35° zoom range.
When paired with an FE mount fixture, the zoom can be adjusted via various motorized control methods, allowing for convenient and efficient light shaping.
Overview
The FL-12E supports both motorized and manual control, allowing the beam angle to be adjusted between 15° and 35°.
When mounted on an FE mount fixture, it supports motorized control: it can be operated directly using the buttons on the lens or the fixture’s control panel, or controlled through the fixture using various methods (including wired controllers, apps, DMX, CRMX, or Ethernet).
Featuring an excellent optical design, it delivers high brightness while providing a focused and soft lighting area with natural beam edge transitions.
The FL-12E features an IP66 rating, allowing it to operate normally in rain, snow, and dusty environments without the need for additional protection.
Specs
Compatible Product: FE mount fixtures, FM mount fixtures
Beam Angle: 15°-35°
IP Rating: IP66
Certification: CE, UKCA, RoHS
Product Size: FL-12E: 151×178×184mm/5.94×7.01×7.24"
Barndoor: 192×174×34mm/7.56×6.85×1.34"
Carrying Bag: 195×195×300mm/7.68×7.68×11.81"
Product Weight: FL-12E: 1.01kg/2.23lb
Barndoor: 0.39kg/0.86lb
Carrying Bag: 0.19kg/0.42lb

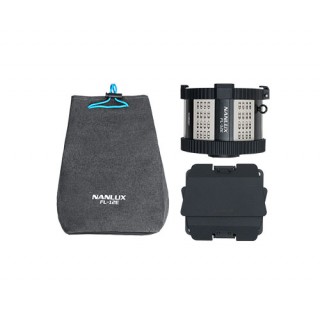

Includes: FL-12E × 1
Barndoor × 1
User Manual × 1
Carrying Bag × 1
