Nanlux FL-45E Fresnel Lens for Evoke
Click Image for Gallery
Nanlux FL-45E Fresnel Lens for Evoke Nanlux FL-45E Fresnel Lens for Evoke
FL-45E

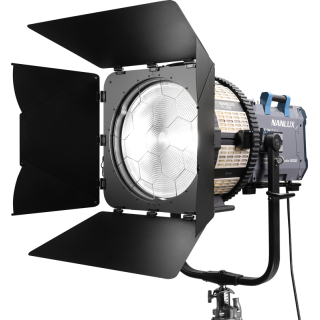

The Motorized Fresnel Lens FL-45E is compatible with NL mount light fixtures equipped with electronic contacts (e.g.Evoke 5000B). it features a 16°-50° zoom range, controllable through multiple methods, and offers lP55 protection.

Overview
The FL-45E features a 45cm lens with a 16°-50° zoom range. At 16°, it gives the Evoke 5000B an illuminance of 47,970 lux (@5m, 5600K), providing smaller lighting area and a less hard appearance.

The zoom range of the FL-45E can be adjusted using the buttons on the Fresnel lens itself, controlled on the fixture, via wired control (wired controller, DMX Ethernet), or through wireless control (Nanlink App 2.0, LumenRadio CRMX). The built-in fans provide operational stability and reliability in high temperature environments.

Specifications:
Compatible with: Evoke 5000B
Beam Angle: 16°-50°
Product Size: FL-45E: 563x578x342mm/22.17x22.76x13.46
                      Barndoor: 693x553x43mm/27.28x21.77x1.69
                      Trolley Case: 775x690x540mm/30.51x27.17x21.26'
Product Weight: FL-45E: 13.75kg/30.311b
                           Barndoor: 3.04kg/6.70lb
                           Trolley Case: 16kg/35.27lb
IP Rating: IP55
Certifications: CE, UKCA, ROHS, IP55

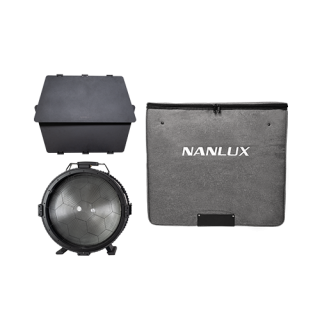

Includes: FL-45E x 1, Barndoor x 1, Trolley Case x 1, User Manual x 1

Nanlux FL-45E Fresnel Lens for Evoke

  • Views: 1521
  • Brand: Nanlite
  • Product Code: FL-45E
  • Availability: Available for Order
  • 2,749.00€
  • Ex Tax: 2,271.90€
