NANLUX Evoke Matrix 2500C Full-color Multi-Source Spot Light Kit
The NANLUX Evoke Matrix 2500C is a 2500W full-color multi-source spotlight designed for high-end film, television, commercial production and large-scale lighting arrays. Like the Matrix 2500B, it is built as a four-head integrated fixture, but with a full-color engine for productions requiring wide color control, accurate skin tones and strong saturation.
The Matrix 2500C uses the NANLUX Nebula C8 Color Light Engine, combining deep red, red, amber, lime, green, cyan, blue and indigo LEDs. This gives the fixture an ultra-wide CCT range of 1000K to 20,000K with green/magenta adjustment of +/-200 across the full range. The color engine is designed to provide better skin tone reproduction, a broader color gamut and enhanced color saturation through advanced color mixing.
The Matrix 2500C offers seven lighting modes: CCT, HSI, HSIW, RGBW, XY Coordinates, Gel and Effect. It delivers 9570 lux at 3m at 5600K without the Fresnel. With the included FL-MT25 Motorized Fresnel Lens, output reaches 67,900 lux at 3m at 5600K with a 16 degree beam angle. The FL-MT25 gives precise remote beam control from 16 to 48 degrees, allowing the fixture to be adjusted even when rigged in difficult or high positions.
The Matrix 2500C is designed for building dense multi-light arrays. Its compact 40x40cm design allows multiple fixtures to be mounted close together, helping create a more continuous spread and increased light density. When used with the optional NANLUX four-light frame, four Matrix fixtures can form a 10,000W lighting array. Multiple arrays can also be mounted on truss systems and combined into a larger modular lighting matrix.
The fixture is built with a one-piece magnesium alloy housing and is IP66-rated, making it suitable for demanding outdoor use in rain, heat and dusty environments. The front-to-rear airflow design helps reduce heat build-up in dense lighting arrays and supports stable performance under continuous high-load operation. The fixture includes four fan modes: Smart, Full Speed, Low Speed and Off.
The Matrix 2500C supports on-board control, remote controller, wired controller, NANLINK App, DMX/RDM, LumenRadio CRMX, Art-Net/sACN and NFC. NFC allows batch configuration of DMX parameters across multiple fixtures, speeding up setup when working with larger arrays. In DMX setups, each lamp head can be individually controlled, making the fixture suitable for advanced productions and virtual production workflows.
Key specifications:
Rated power: 2500W
Input voltage/current: AC100-240V / 50-60Hz / 28A
CCT: 1000K-20,000K, G/M +/-200
CRI: average 98
TLCI: average 98
TM-30 Rf: average 96
TM-30 Rg: average 100
SSI: 3200K: 86 / 5600K: 78
Dimming: 0.0%-100.0%, in 0.1% increments
Light fixture size: 399 x 399 x 234mm
Light fixture weight: 18.07 kg
Yoke weight: 2.25 kg
FL-MT25 weight: 4.04 kg
Standard kit carton size: 630 x 575 x 560mm
What’s in the box:
Matrix 2500C x 1
Yoke x 1
FL-MT25 Motorized Fresnel Lens x 1
AC Power Cable 7.5 m x 1
User Manual x 1
The NANLUX Evoke Matrix 2500C is a 2500W full-color multi-source spotlight designed for high-end film, television, commercial production and large-scale lighting arrays. Like the Matrix 2500B, it is built as a four-head integrated fixture, but with a full-color engine for productions requiring wide color control, accurate skin tones and strong saturation.
The Matrix 2500C uses the NANLUX Nebula C8 Color Light Engine, combining deep red, red, amber, lime, green, cyan, blue and indigo LEDs. This gives the fixture an ultra-wide CCT range of 1000K to 20,000K with green/magenta adjustment of +/-200 across the full range. The color engine is designed to provide better skin tone reproduction, a broader color gamut and enhanced color saturation through advanced color mixing.
The Matrix 2500C offers seven lighting modes: CCT, HSI, HSIW, RGBW, XY Coordinates, Gel and Effect. It delivers 9570 lux at 3m at 5600K without the Fresnel. With the included FL-MT25 Motorized Fresnel Lens, output reaches 67,900 lux at 3m at 5600K with a 16 degree beam angle. The FL-MT25 gives precise remote beam control from 16 to 48 degrees, allowing the fixture to be adjusted even when rigged in difficult or high positions.
The Matrix 2500C is designed for building dense multi-light arrays. Its compact 40x40cm design allows multiple fixtures to be mounted close together, helping create a more continuous spread and increased light density. When used with the optional NANLUX four-light frame, four Matrix fixtures can form a 10,000W lighting array. Multiple arrays can also be mounted on truss systems and combined into a larger modular lighting matrix.
The fixture is built with a one-piece magnesium alloy housing and is IP66-rated, making it suitable for demanding outdoor use in rain, heat and dusty environments. The front-to-rear airflow design helps reduce heat build-up in dense lighting arrays and supports stable performance under continuous high-load operation. The fixture includes four fan modes: Smart, Full Speed, Low Speed and Off.
The Matrix 2500C supports on-board control, remote controller, wired controller, NANLINK App, DMX/RDM, LumenRadio CRMX, Art-Net/sACN and NFC. NFC allows batch configuration of DMX parameters across multiple fixtures, speeding up setup when working with larger arrays. In DMX setups, each lamp head can be individually controlled, making the fixture suitable for advanced productions and virtual production workflows.
Key specifications:
Rated power: 2500W
Input voltage/current: AC100-240V / 50-60Hz / 28A
CCT: 1000K-20,000K, G/M +/-200
CRI: average 98
TLCI: average 98
TM-30 Rf: average 96
TM-30 Rg: average 100
SSI: 3200K: 86 / 5600K: 78
Dimming: 0.0%-100.0%, in 0.1% increments
Light fixture size: 399 x 399 x 234mm
Light fixture weight: 18.07 kg
Yoke weight: 2.25 kg
FL-MT25 weight: 4.04 kg
Standard kit carton size: 630 x 575 x 560mm

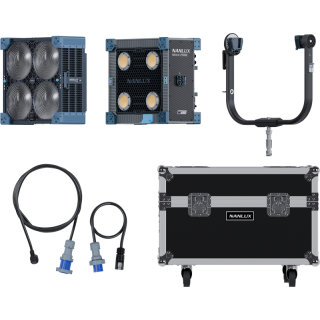

What’s in the box:
Matrix 2500C x 1
Yoke x 1
FL-MT25 Motorized Fresnel Lens x 1
AC Power Cable 7.5 m x 1
User Manual x 1
Flight case x 1
