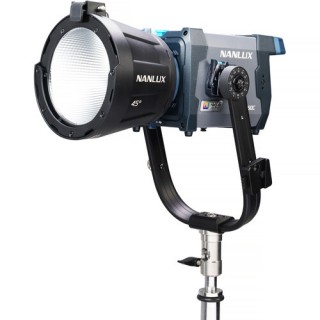

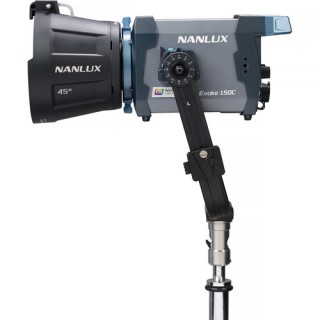

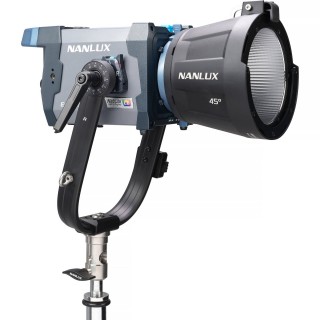

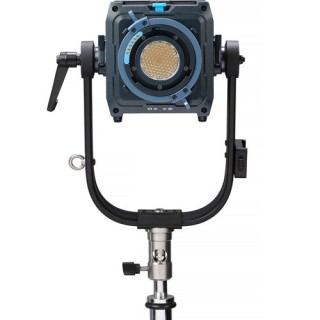

Focused on complete color control, the Evoke 150C RGB LED Spot Light from Nanlux is an ideal choice for a light setup in need of an all-in-one full-color fixture with no external ballast. Developed to accommodate a variety of situations, the light's wide color balance from 1000 to 20,000K is backed by an extensive +/- 200 green/magenta tint-shifting. Behind this advanced capability is the Nebula C8 8-chip light engine that mixes deep red, red, amber, lime, green, cyan, blue, and indigo LEDs for the most vivid colors. The Evoke 150C permits AC/DC power and features a wide range of reliable control methods—onboard, DMX/RDM, LumenRadio CRMX, app, and optional wireless/wired remotes. Finally, the Evoke 150C is built around an IP66-rated housing for all-weather protection.

Compact Powerhouse

Using a reliable 8-chip light engine, the Evoke 150C's Nebula C8 technology produces bright and accurate illuminance for a variety of scenarios—meaning deep saturation, warm CCT, and wide color gamut with eight colored LED emitters. The Evoke 150C features advanced light mixing technologies ensuring accuracy in CCT changes from 1000K all the way up to 20,000K. With its compact form factor and lightweight design, the Evoke 150C outputs an impressive 22,230 lux at 3.3' with its included 45° reflector.

Nebula C8 LED Light Engine

Nanlux's goal here was to find the highest level of accuracy. Through rigorous testing, the brand combined a specific number of LEDs that produce highly accurate color rendition with the widest possible color range. By applying the Nebula C8 technology, the Evoke 150C's 8-chip LED engine means the most accurate, broadest, and richest spectrum of the color space. Developed for professionals who care about the quality of color rendition, the Evoke 150C has gone through the most rigorous and professional testing until it became an accurate and extremely versatile full color fixture that still maintains a compact body at 8.2 x 5.7 x 5".

Accurate Color, Precise Dimming & Effects

Always light with confidence: whether you're dimming down or going to full intensity. The Evoke 150C features 0-100% dimming capabilities in 0.1% step increments for smooth light fading and seamless adjustments. CRI 96, TLCI 97, SSI 78 at 5600K, and SSI 86 at 3200K are high ratings that demonstrate precise color rendering, which translates in pleasing tones. Besides that, 15 built-in effects are CCT loop, INT loop, HUE loop, flash, pulse, storm, police car, TV, paparazzi, candle/fire, disco, bad bulb, fireworks, explosion, and welding.

Extensive Operating Options

Nanlux offers a generous bounty of methods to control the Evoke 150C, supporting both wired and wireless control for simple or complex sets. Dimming and other adjustments can be made locally, over DMX/RDM, or by using other advanced options. These operating options include: intuitive onboard or wireless Nanlink app control via Bluetooth, DMX control with an optional DMX console, wireless DMX via LumenRadio CRMX, or optional WS-RC-C2 wireless and WC-EXT wired remotes. The optional AS-EXT-LAN adapter also supports Ethernet control with the ArtNet/sACN protocols. NFC functionality allows for quick app control.

Simplified AC/DC Power & Cooling System

One of the main highlights of this fixture is its convenient all-in-one design with no need for an external ballast. A single cord plugs into one port for both AC and DC power options. Power options are AC 100-240V, plus DC 14.4-28V, or PD3.0 12-28V. Use it anywhere with standard wall socket extension cords or optional D-tap batteries. To keep the light from overheating, this fan-cooled fixture provides five different modes: smart, full speed, low speed, pause, and off.

45° FE Mount Reflector

Paired with its included 45° reflector, the Evoke 150C enables FE mount-compatible light modifiers, as well as FM mount modifiers and accessories, offering high modifying possibilities within your already existing Nanlux or Nanlite gear inventory. Electronic contacts communicate with select modifiers for optimized performance. The FE mount allowed Nanlux to keep the light body as compact as possible.

All-Weather Protection

Rugged and durably constructed, the IP66-rated design of the Evoke 150C protects the fixture from dust, water, or any rough weather or demanding environments. Do not worry about location work under the rain or any eventuality that occurs on set. The light was made to be robust, but its modular design facilitates repairs if needed.

Accessories

The Evoke 150C is packed with a 14.7' AC power cord, a D-tap cable, a USB flash drive, and a magnetic base. Nanlux adds a carry bag for shooters who want to take the light on location or store it with maximum safety.

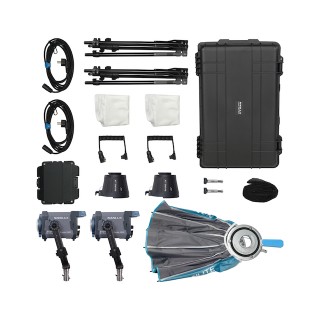

In the box:

Evoke 150C × 2
Yoke × 2
FE Mount Reflector 45°× 2
AC Power Cable 4.5m × 2
D-Tap Cable × 2
USB Flash Drive × 1
Magnetic Base × 2
5/8″ Baby Pin with Quick Release Plate × 2
FL-12 Fresnel Lens × 1 (Barndoor × 1)
Rapid 60 Softbox × 1 (Standard Diffuser × 1, Medium Diffuser × 1, Eggcrate × 1)
Light Stand × 2
User Manual × 1

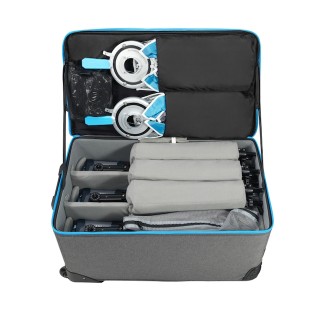

Plastic Trolley Case × 1
