The new PavoSlim 240CL is a slim, robust, lightweight, and easy-to-install LED panel that offersprofessionals exciting new possibilities when lighting in tighter spaces. Since its launch, theindustry has rapidly adopted the PavoSlim series of super-thin, high-output panel lights. Theselights are recognized for their significant advantages in output and ruggedness over traditionalLED light mat products, while also providing excellent control and quality of light. This latest 4x1 model in the range maintains the slim, lightweight design while offering a powerful 240W output. The unique dimensions of the PavoSlim 240CL make it ideal for use in confined spaces or areas with limited headroom. It can be used close to talent, hidden easily within a set design, or suspended from ceilings, and it excels in virtual production applications. All with the added versatility of color, wireless LumenRadio CRMX, and control via remote or app.
Lightweight yet Bright
The PavoSlim 240CL has a high rated power of 260W, like the PavoSlim 240B/240C, while the fixture body weighing only 3.62 kg//7.98lb. With the carefully designed optical lens, the light from each emitter is perfectly mixed, achieving four times the output of similar products and delivering impressive brightness of 21,030 lux @1m, all within a compact body.
Distinctive lighting, Slim yet Rugged
The 4’x1’ size of the PavoSlim 240CL expands the available size options of the PavoSlim series. The difference in length and width enables the fixture to provide a softer light on the long side and a harder light on the short side, allowing for flexible application based on needs. The PavoSlim 240CL’s elongated shape, combined with a thickness of just under 1 inch (2.35 cm), means it can be easily and flexibly set up in tight spaces or locations with low height ceilings.
Fast Installation, Easy Detachment
Every element of the PavoSlim is designed for rapid deployment.
Snap and Lock
A universal holder and a baby pin holder are included for securing the fixture and adjusting the tilt. Either can be easily mounted on the back of the fixture.
Snap and Mount
The included quick release clamp can be snapped into the quick release plate on the control unit, allowing it to be securely mounted on the light stand or truss.
Release and Deploy
The fixture comes with the softbox pre-installed. Simply tear the hook and loop fasteners and the softbox is ready to use. After use, compress the softbox and attach the hook and loop fasteners for convenient storage with the fixture.
Wrap and Use

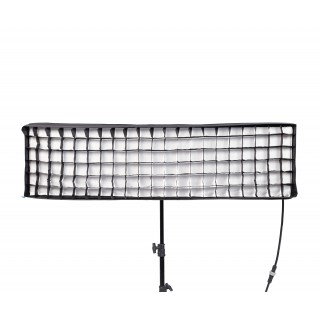

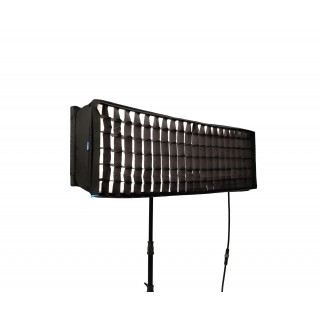

The eggcrate can be quickly wrapped over the softbox using the elasticated strap, making it simpler and more convenient compared to traditional fasteners.
Excellent Color Accuracy
Thanks to Nanlite’s advanced color mixing technology, the PavoSlim 240CL features a CCT range of 2700K to 7500K, with the added benefit of green/magenta adjustment. Whether for accurate color rendering or specific lighting effects, it can be fine-tuned to match with other light sources by adjusting the green/magenta values.
Multiple Sizes for Different Needs
The PavoSlim series is available in 2'×0.5', 1'×1', 2'×1', 2'×2' and 4'×1' sizes, and in bi-color or full color*. This allows them to be fit into a wide variety of locations and spaces depending on the requirements.
*The 2'×0.5' and 4'×1' sizes are only available in the full color version.
Various Modes for Creations
The PavoSlim 240CL is designed to meet a wide range of lighting needs. With built-in five lighting modes and excellent color reproduction capacity, it provides vast creative possibilities. No matter fine tune the green/magenta based on the white light or select from a wide range of colors, the PavoSlim 240CL is ready to fulfill every request.
Comprehensive and Efficient Controls
Based on the demand for efficient lighting control, the PavoSlim 240CL can be controlled in five different ways, ensuring that users can always find the most suitable method in different environments. Settings can be quickly and directly adjusted using the control unit, while the Nanlink App and DMX console enable remote control and more precise lighting adjustments.
Multiple Reliable Power Options
The PavoSlim 240CL can be powered by AC power, DC power or V-mount batteries of various voltages, making it suitable for both indoor and outdoor scenarios. Powered by V-mount batteries of various voltages, the PavoSlim 240CL provides greater convenience for on-the-go shooting. The efficient circuit design not only delivers high output power when using battery power but also enables hot swapping* between different power sources.
*The current intensity must be within the supported range of the selected power supply option when hot swapping.
Expanding Possibilities
The flexibility of PavoSlim 240CL is enhanced further with optional accessories. DC Connection Cable 5M (optional): This cable is made with interconnectable connectors that can be coupled with the included DC connection cable for extended reach. This is ideal for situations where the fixture is rigged at high up or at distance. Dual-Panel Coupler (optional): Two PavoSlim 240CL can be coupled to form 4'×2' size, increasing the illuminance and lighting coverage. Paired with specialized softboxe and eggcrate, this setup further enhances the soft lighting.
Slender & Reliable Case
The included carrying bag is designed with a solid structure to withstand unexpected bumps and pressure during transport. The interior is thoughtfully partitioned for easy organization, while providing extra space to accommodate other items, enhancing the space efficiency.
PavoSlim 240CL Key Features:
• LED Full Color Panel Light
• 4’ × 1’ fixture body
• Delivers 21,030 lux @1m, 5600K with rated power of 260W
• Wide CCT range of 2700K-7500K with ±150 green/magenta adjustment
• CRI/TLCI average 96/97, TM-30 Rf/Rg average 94/100, SSI 3200K: 84/5600K:74
• Intuitive operation with two-inch screen, two buttons and two knobs

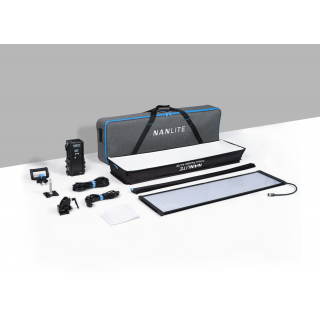

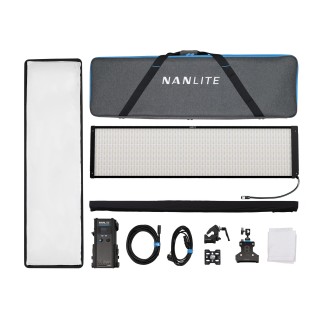

• Included a pop-up softbox, universal holder and baby pin holder
• Multiple control methods: On-board, Remote Controller, Nanlink APP, DMX/RDM, LumenRadio CRMX
• Multiple lighting modes: CCT/HSI/RGBW/GEL/EFFECT
• 15 lighting effects: HUE Loop, CCT Loop, INT Loop, Flash, Pulse, Storm, Police Car, TV, Paparazzi, Candle/Fire, Disco, Bad Bulb, Firework, Explosion and Welding
• Multiple power supply options: AC/DC/V-mount battery
| LED light specifications | |
| LED Power | 260W |
| Color Temperature | 2700K-7500K |
| Brightness(LUX) | Illumination: 5600K: [email protected], 21030lux@1m, 6985 lux@2m 3200K: [email protected], 19570lux@1m, 6496lux@2m |
| Color Rendering Index | 96 |
| TLCI(Qa) | 97 |
| Brightness Control | 0-100% |
| Net Weight | 3.62 kg |
| Power Source | Input Voltage/Current: AC 100-240V 50/60HZ DC 48V/5.6A DC (Battery）14.4-26V |
